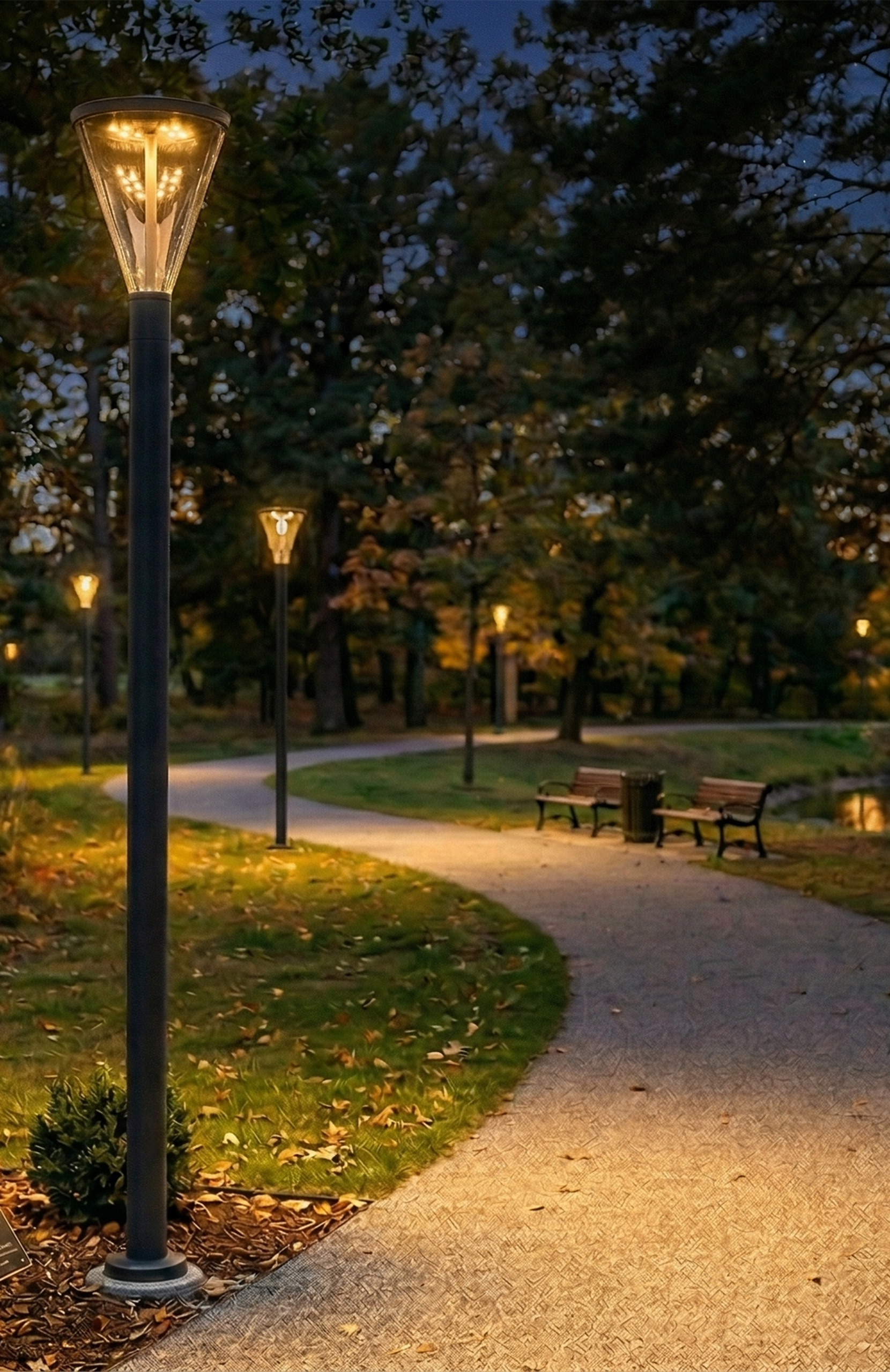

Row of OptoSmart Tura architectural lighting poles providing uniform, asymmetrical illumination along a curved public park pathway at night.
DarkSky Approved

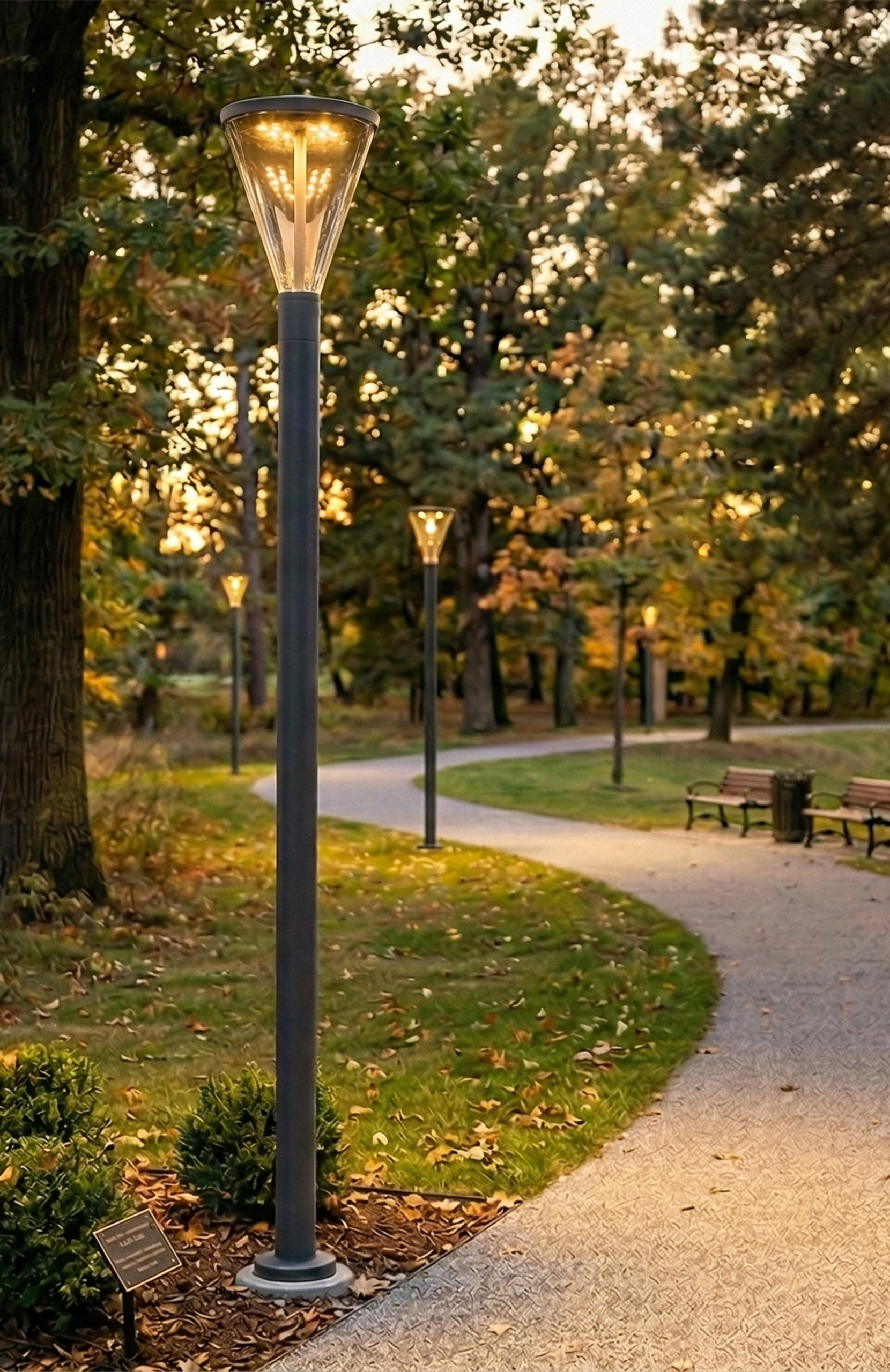

OptoSmart Tura sustainable urban lighting poles integrated into an autumnal park landscape, delivering eco-friendly illumination at dusk.

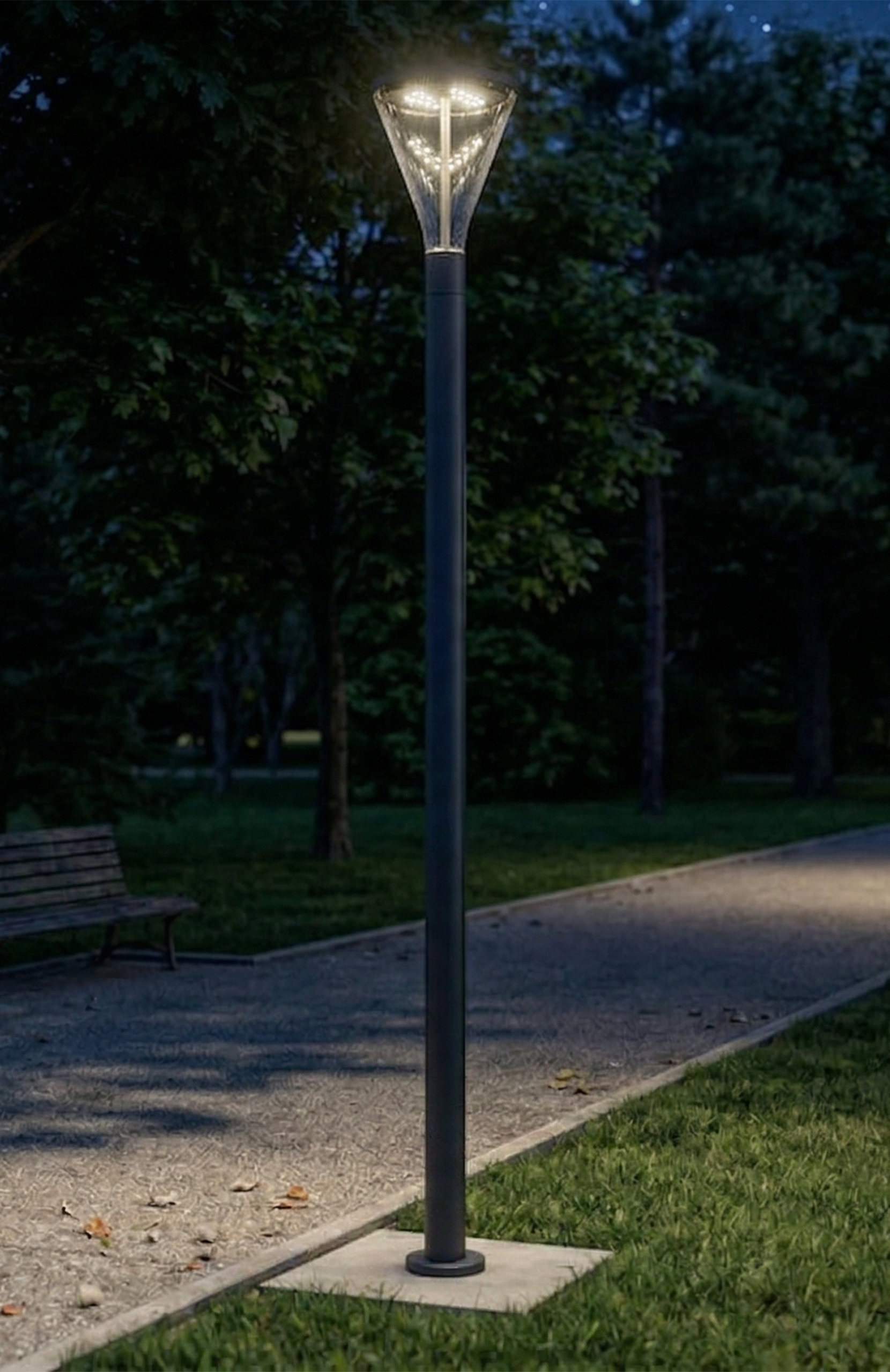

Close-up of the illuminated OptoSmart Tura Dark Sky approved pole, showcasing its premium anti-glare diffuser and warm LED output at night.

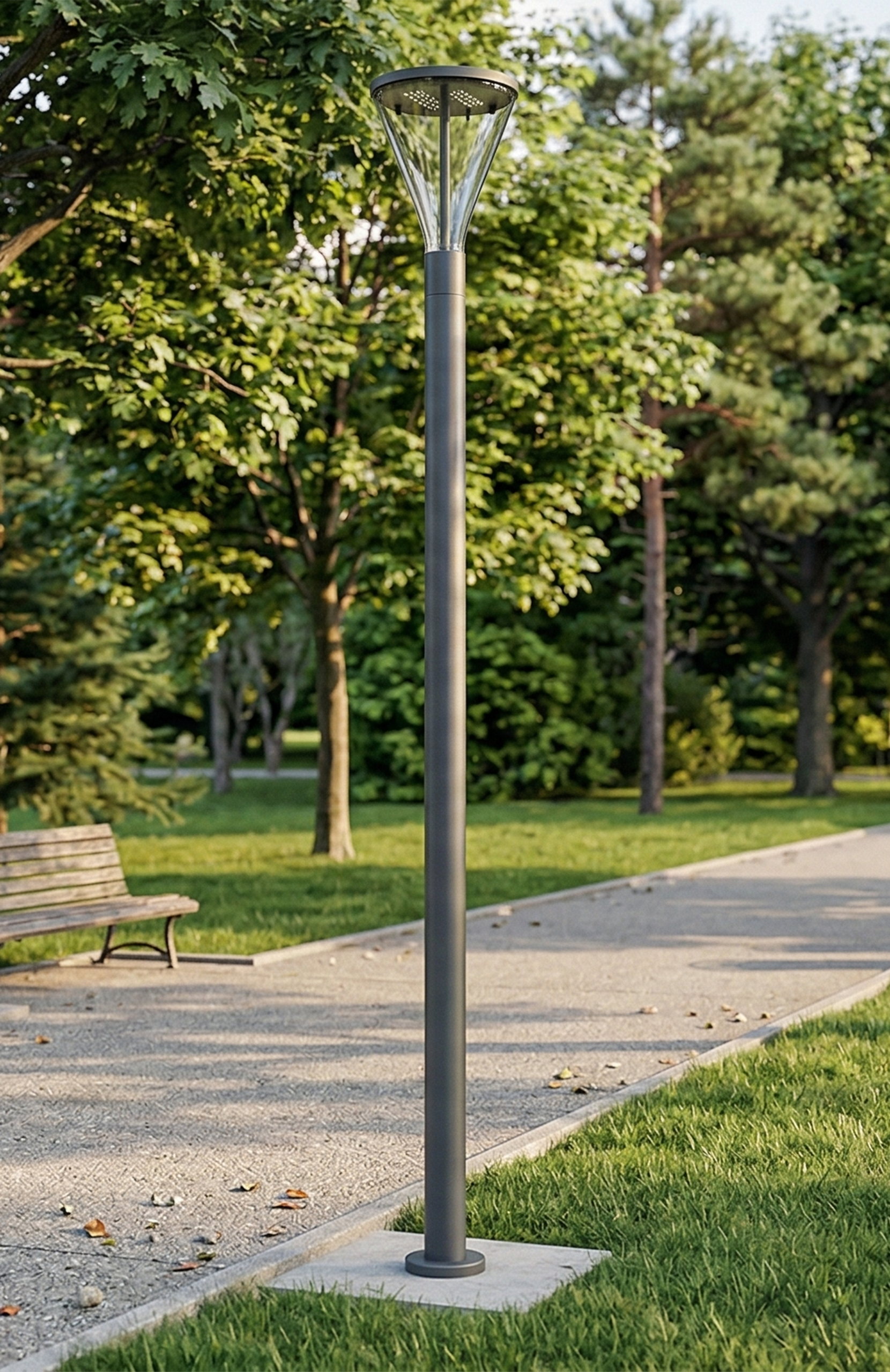

Sleek cylindrical OptoSmart Tura lighting pole featuring a modern transparent luminaire head, installed near a park bench during the day.

Tura | DarkSky Approved Lighting Pole

The Tura Pole: Versatile and Robust Urban Illumination

The Tura Lighting Pole, proudly manufactured by OptoSmart, offers a perfect blend of modern aesthetics and highly durable engineering for demanding outdoor environments. Designed to seamlessly integrate into urban landscapes, the Tura provides a sophisticated and reliable lighting solution tailored for cities, highways, and promenades.

High-Performance Optical Engineering

Equipped with premium Cree or LUMILEDS LED chips and dependable Meanwell or OSRAM drivers, the Tura pole delivers exceptional visibility. It boasts a luminous efficiency of 105-130 lm/W, providing a luminous flux that scales from 2100 lm to 7800 lm. With an asymmetrical light distribution and a Color Rendering Index (CRI) of >80, it ensures accurate color representation and superior ground coverage.

Rugged and Resilient Build

  • Premium Housing: Constructed with a cylindrical steel or aluminum pole body, complemented by an aluminum luminaire housing and an aluminum injection heatsink for optimal thermal management.
  • Weather & Impact Resistance: Rated IP65 for high-level protection against dust and water ingress, and IK08 for robust mechanical impact resistance.
  • Durable Components: Secured with A4 Stainless Steel fasteners and protected by a dual-layer electrostatic powder coating, available in customized RAL catalog colors.
  • Advanced Anti-Glare: Features a plexiglass diffuser and LEDIL optics to minimize glare and maximize visual comfort.

Versatile Configurations

The Tura is highly adaptable to specific project needs, supporting power configurations from 20W to 60W. It offers a wide range of color temperatures, from a warm 3000K up to a crisp 6500K, ensuring it fits both modern architectural and eco-sensitive environments.

Request a Quote

Technical Specifications Overview

  • Height: 2 – 6 Meters
  • LED Power: 20W – 60W
  • Luminous Flux: 2100 lm – 7800 lm
  • Color Temperature (CCT): 3000K (Standard DarkSky) up to 6500K
  • Efficiency: 111 lm/W (System Average)
  • Input Voltage: 220-240 VAC (50/60 Hz)
  • Lifespan: >50,000 Hours
  • Certification: IDA DarkSky Approved, CE, ROHS, TSE

Ideal Applications for the Tura Pole

With its robust cylindrical profile and asymmetrical optical distribution, the Tura Lighting Pole is designed for a wide range of demanding urban applications. It is ideally suited for:

  • City Centers: Perfect for illuminating modern town squares and public architectural installations.
  • Highways & Roadways: Ensuring high visibility and safety on primary transit routes.
  • Promenades & Parks: Enhancing the aesthetic and security of long outdoor walkways and on-ground settings.

DATASHEET
TECHNICAL DRAWING
DARKSKY CERTIFICATE
