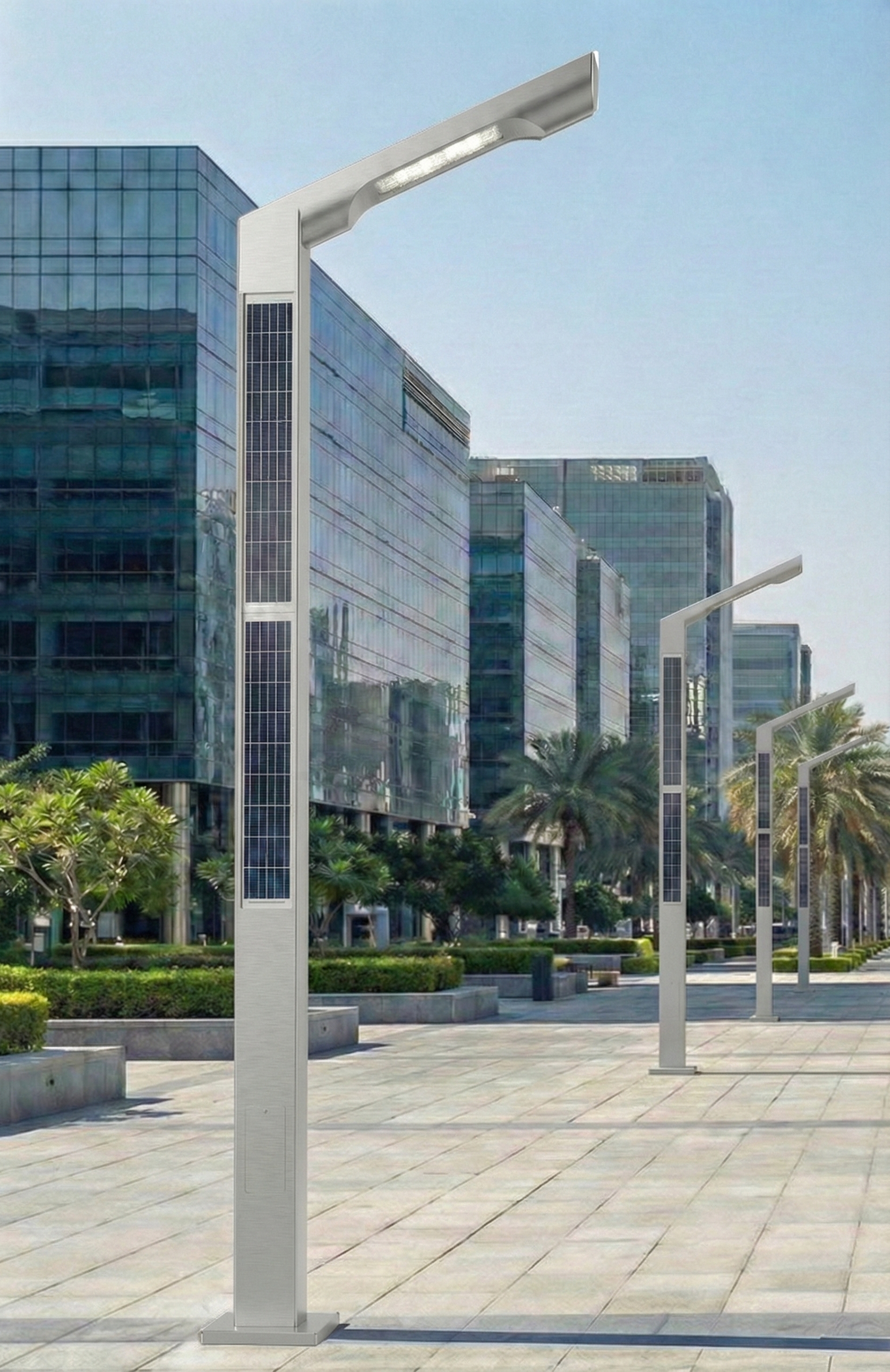

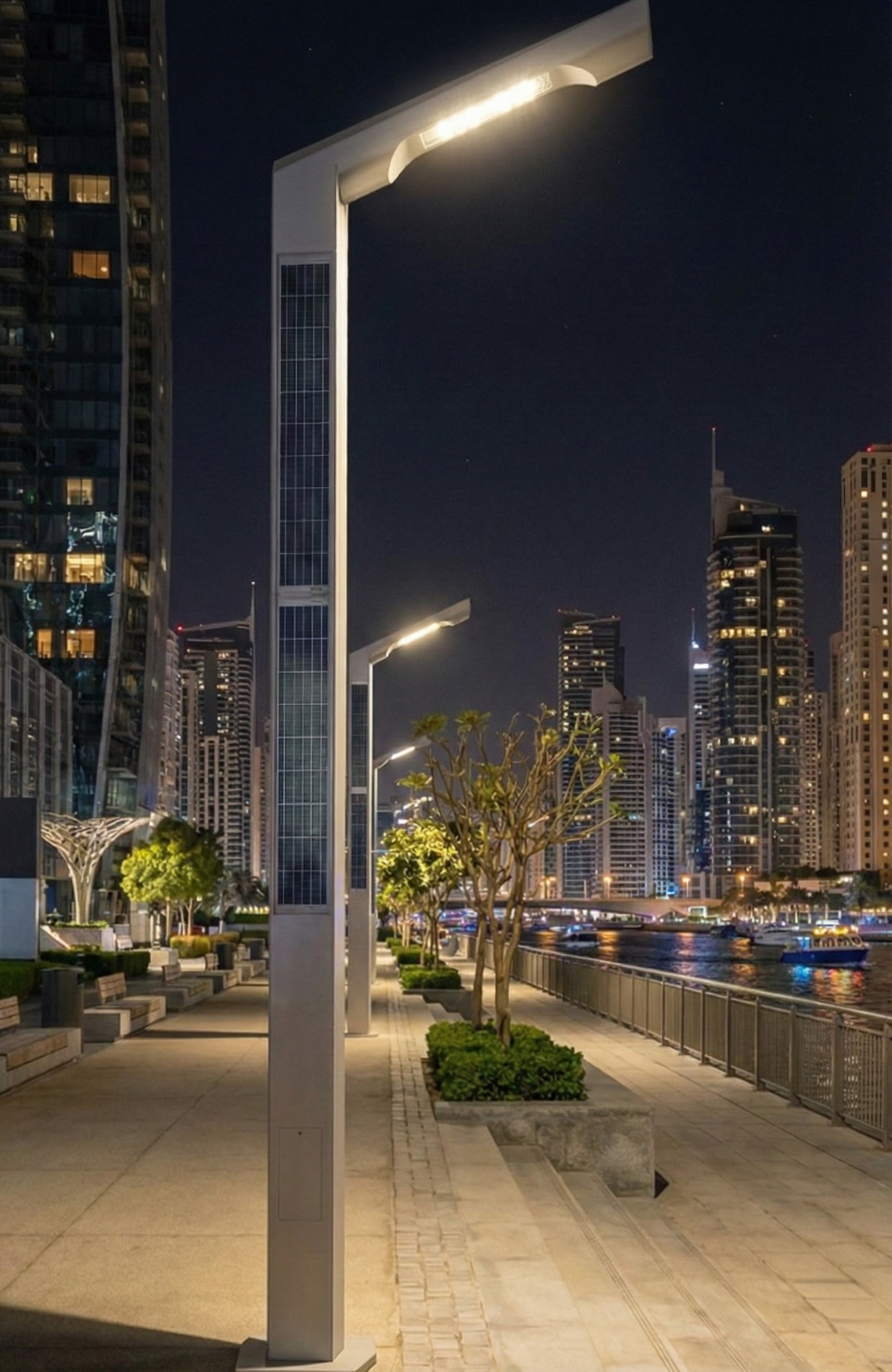

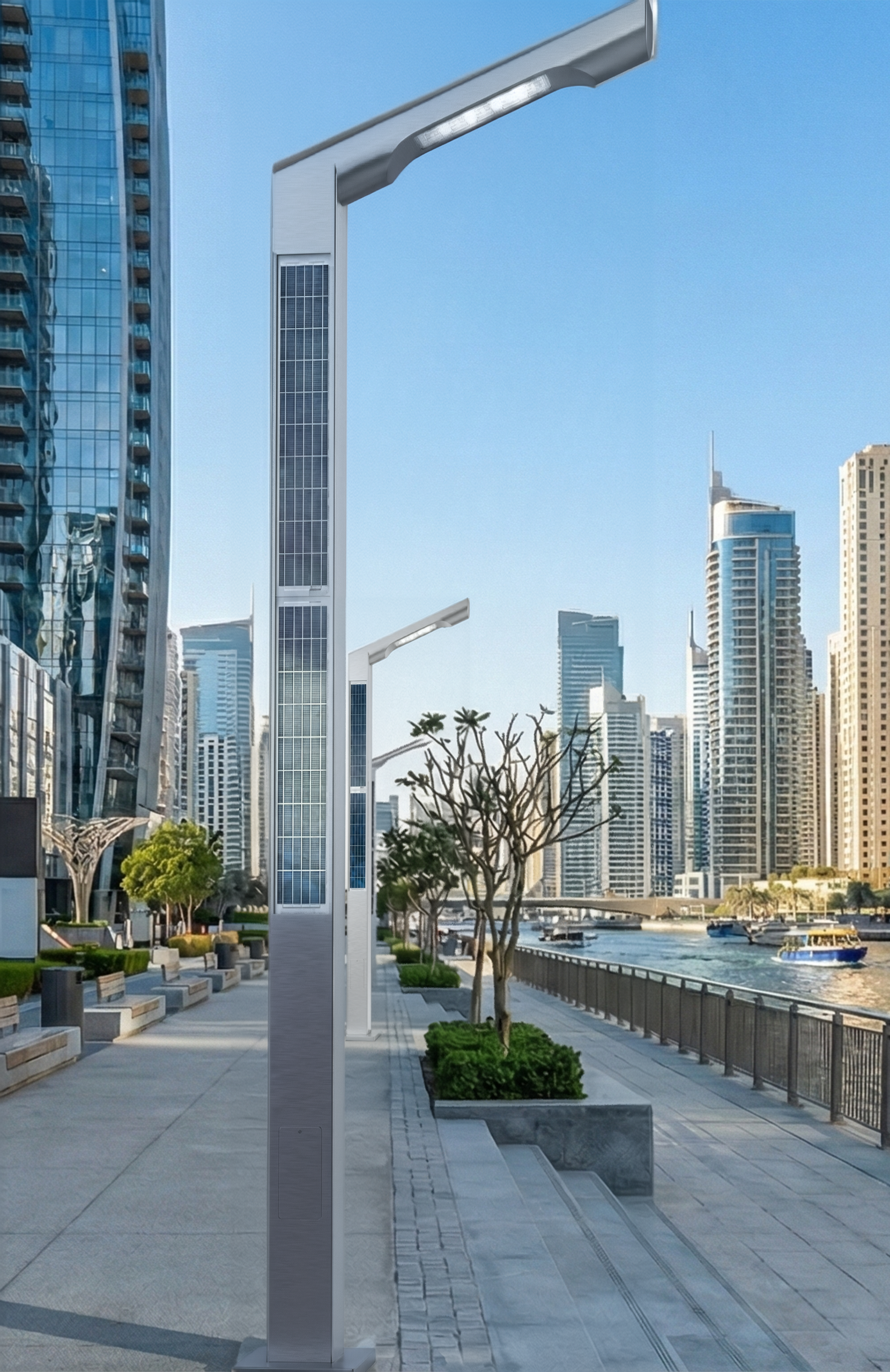

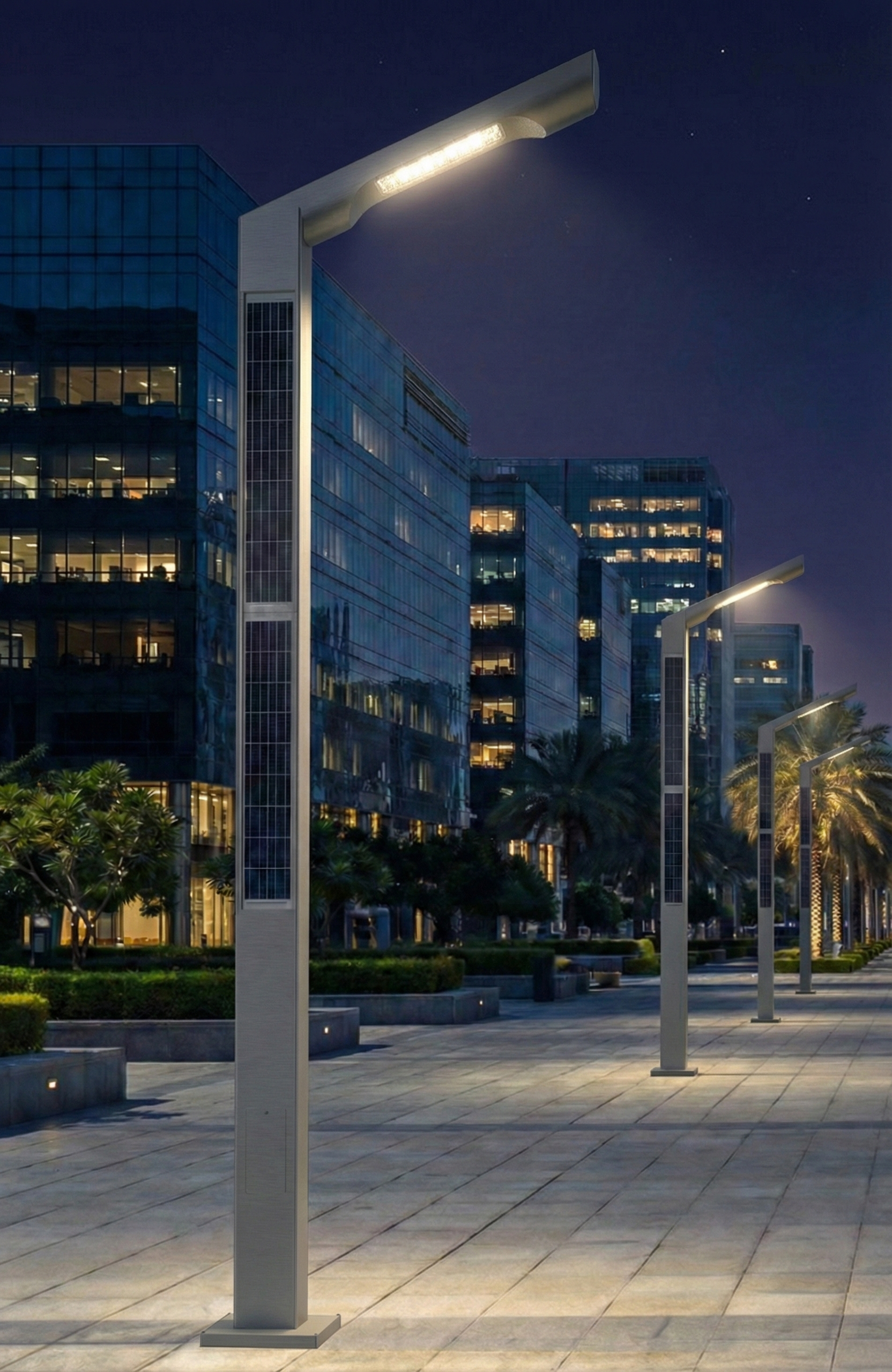

The Sega Smart Solar Pole: Sustainable Urban Illumination

The Sega Pole represents a groundbreaking approach to lighting design that seamlessly combines functionality, aesthetics, and sustainability. Featuring modern lines and high-quality materials, it enhances the visual appeal of both urban and rural environments while providing much-needed, reliable illumination. By innovatively harnessing solar energy, this premium OptoSmart fixture delivers high-performance lighting without relying on traditional power grids. Consequently, it is an excellent choice for areas with limited electricity access or projects focused on reducing their carbon footprint.

Advanced Mechanical & Durability Features

• Robust Construction: Built with a durable aluminium body and secured with stainless steel screws.
• Weatherproof Design: Sealed with a high-quality silicone gasket for enhanced weather protection.
• Thermal Efficiency: Finished with an electrostatic polyester powder coating that provides high thermal conductivity.
• IP66 Protection Grade: Complete protection to safely resist dust and water ingress.
• IK08 Impact Resistance: High-level protection against mechanical impacts and vandalism.
• European Standards: Complies strictly with EN-60598 and features Class I electrical installation.

Intelligent Operating Profile & Hybrid Charging

• Smart Energy Management: Utilizes an energy-saving dimming profile: 6 hours at 100% output, followed by 6 hours at 50% output.
• Maximum Reliability: Equipped with Hybrid & AC/DC charging capabilities to ensure uninterrupted performance in varying weather conditions.

Technical Specifications Overview

• Height: 4 – 12 Meters
• LED Power: 40W – 100W
• Luminous Flux: 4800 lm – 15,000 lm
• Color Temperature (CCT): 3000K – 6500K
• Solar Panel: N*160W Square Panel (Configured to Requirement)
• Battery Type: LiFePO4
• Charge Controller: MPPT (Maximum Power Point Tracking)
• Material: Aluminum / Stainless Steel Body, Stainless Steel Fasteners
• Protection Class: IP66 / IK08

Ideal Applications for the Sega Pole

Thanks to its versatile height options and high-lumen output, the Sega Pole is ideally suited for a wide range of outdoor environments:

• Urban & Public Spaces: Seamlessly integrates into city squares, plazas, and commercial districts, enhancing the overall visual appeal.
• Streets & Roadways: The 5-meter and 8-meter height options, combined with high-lumen LED outputs (up to 2×7250 lm), provide excellent visibility for main roads and residential streets.
• Off-Grid & Rural Areas: Powered entirely by high-efficiency solar panels and LiFePO4 batteries, making it the perfect solution for remote locations.
• Parks & Recreational Areas: The IK08 and IP66-rated body ensures reliable, weather-resistant illumination for public parks and walking trails.
• Eco-Friendly Developments: An excellent choice for green building projects, eco-resorts, and corporate campuses actively reducing their carbon footprint.

DATASHEET
SINGLE ARM TECHNICAL DRAWING
DOUBLE ARM TECHNICAL DRAWING
IES / PHOTOMETRY
