Heera | DarkSky Approved Lighting Bollard
Elegant and Robust Pathway Illumination
The Heera Lighting Bollard , brought to you by afc OptoLed , embodies the perfect blend of modern aesthetics and highly durable engineering for demanding outdoor environments. Designed to seamlessly integrate into urban landscapes, Heera provides a sophisticated and reliable on-ground lighting solution tailored for cities, highways, and promenades.
Key Features & Benefits
High-Performance Optical Engineering
Equipped with premium Cree or LUMILEDS LED chips and dependable Meanwell or OSRAM drivers, the Heera bollard delivers exceptional visibility. It boasts a luminous efficiency of 105-120 lm/W , providing a luminous flux that ranges from 1050 lm to 2400 lm. With a symmetrical light distribution and a Color Rendering Index (CRI) of >80 , it ensures accurate color representation and superior ground coverage.
Rugged and Resilient Build
- Premium Housing: Constructed with a durable aluminum body , an aluminum injection molded cover , and an aluminum injection heatsink for optimal thermal management.
- Weather & Impact Resistance: Rated IP66 for high-level protection against dust and water ingress , and IK08 for robust mechanical impact resistance.
- Durable Components: Secured with A4 Stainless Steel fasteners , a silicone gasket , and protected by an electrostatic powder coating , available in customized RAL catalog colors.
- Advanced Optics: Features an optic lens and a polycarbonate diffuser to maximize visual comfort.
Smart Control & Efficiency
The Heera Bollard is highly adaptable to specific project needs, ensuring maximum energy savings with low power consumption between 5W and 20W. It supports DALI Dimmable and ON/OFF control options while providing an internal 4kV surge protection. It offers a versatile range of color temperatures, from a warm 3000K up to a crisp 6500K.
Operating Profile
| Specification | Heera (Certified) |
| Height | 700 – 1200mm |
| LED Power | 5-20W |
| Luminous Flux | 1050 lm – 2400 lm |
| Color Temperature | 3000K (Standard DarkSky) |
| Efficiency | 105-120 lm/W |
| Input Voltage | 220–240 VAC (50/60 Hz) |
| Lifespan | >50,000 Hours |
| Certification | IDA DarkSky Approved, CE, ROHS, TSE |
Ideal Applications

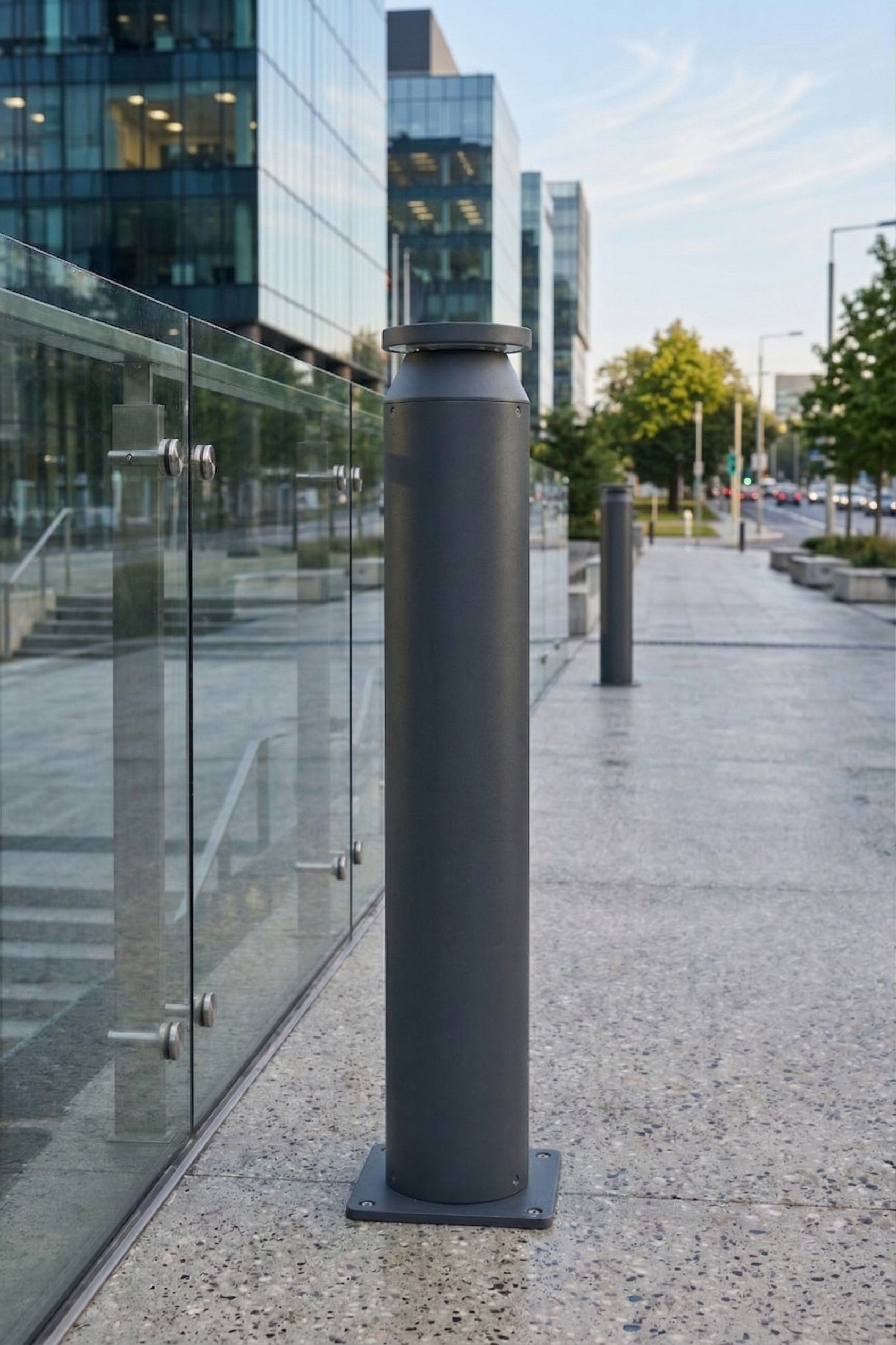

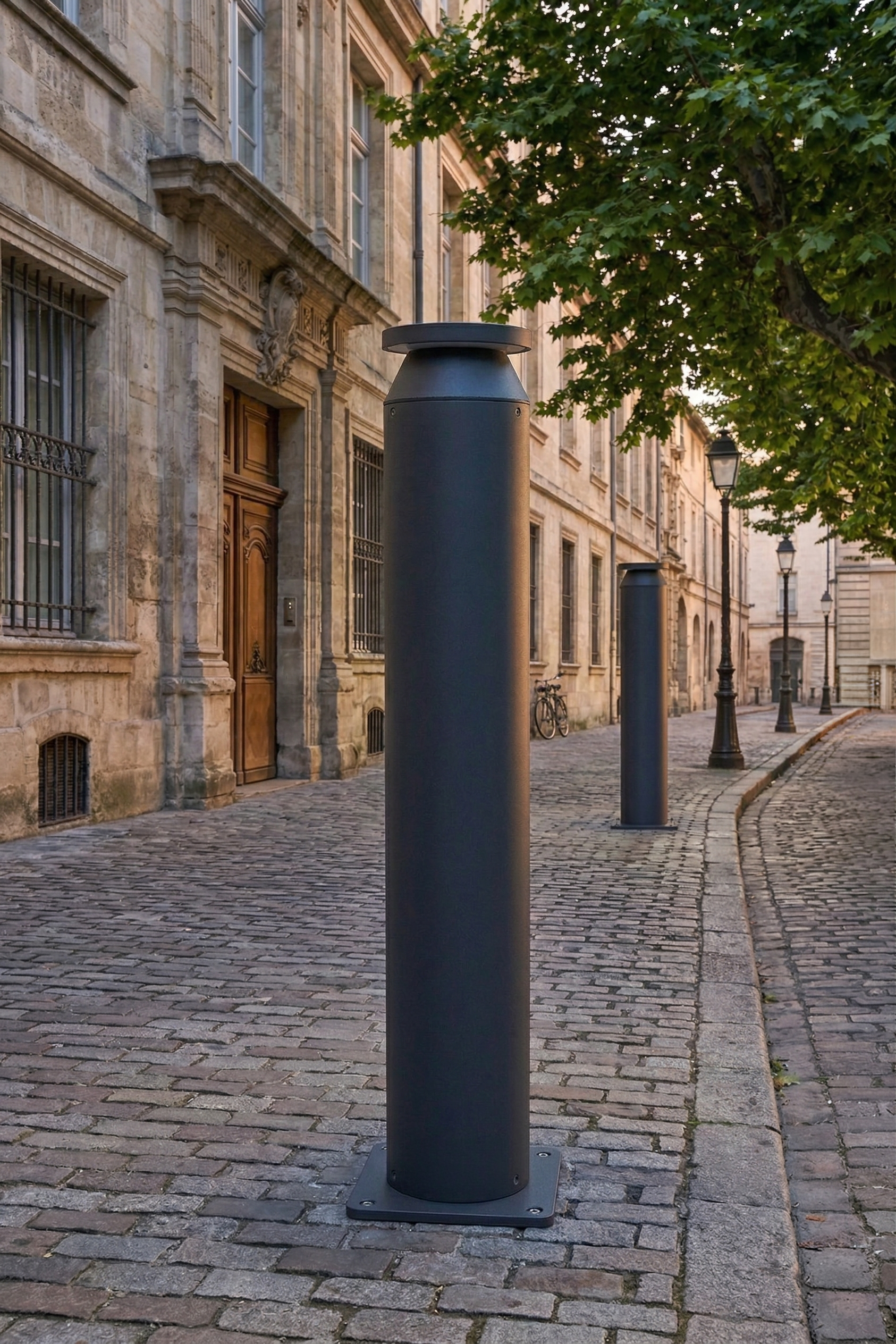

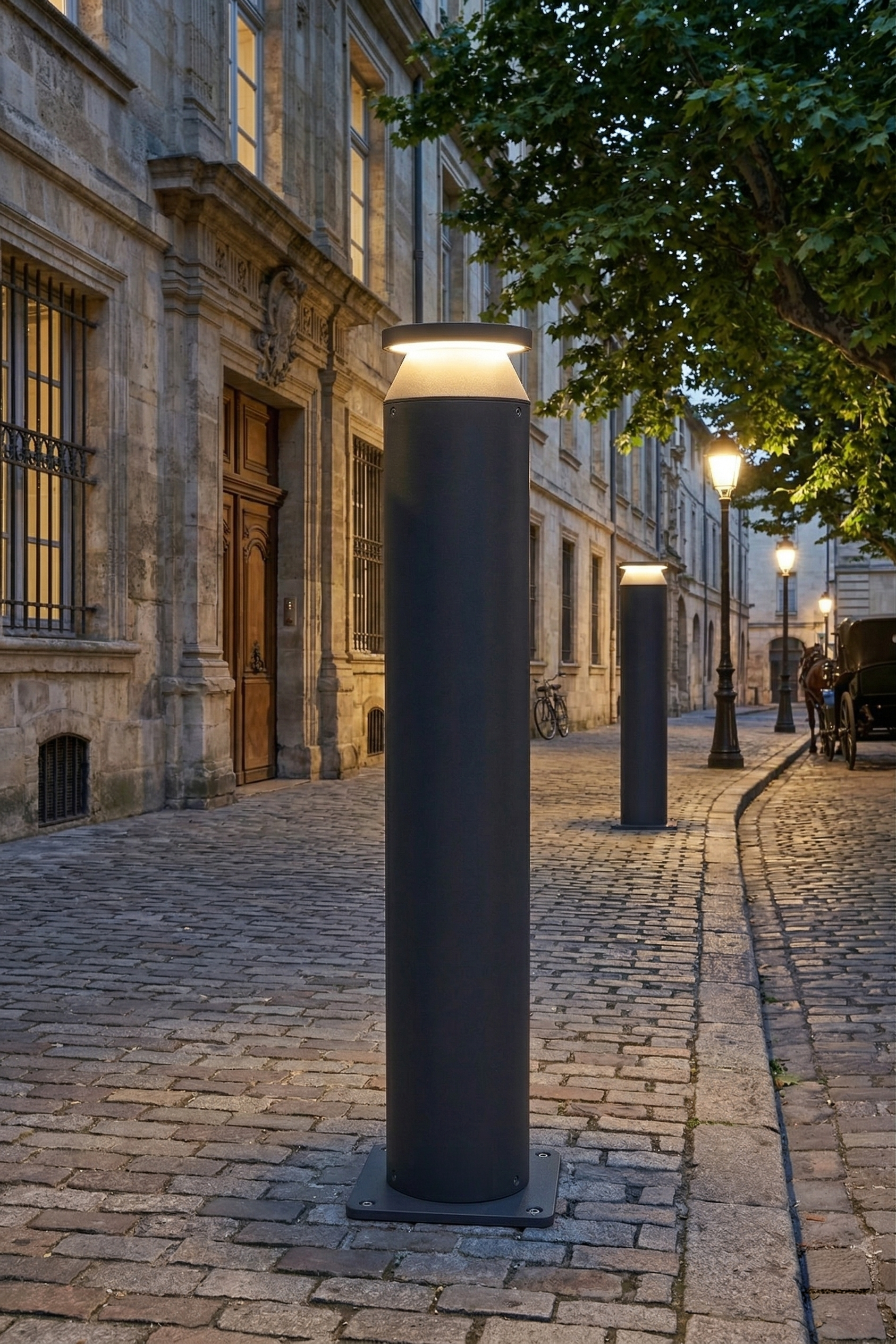

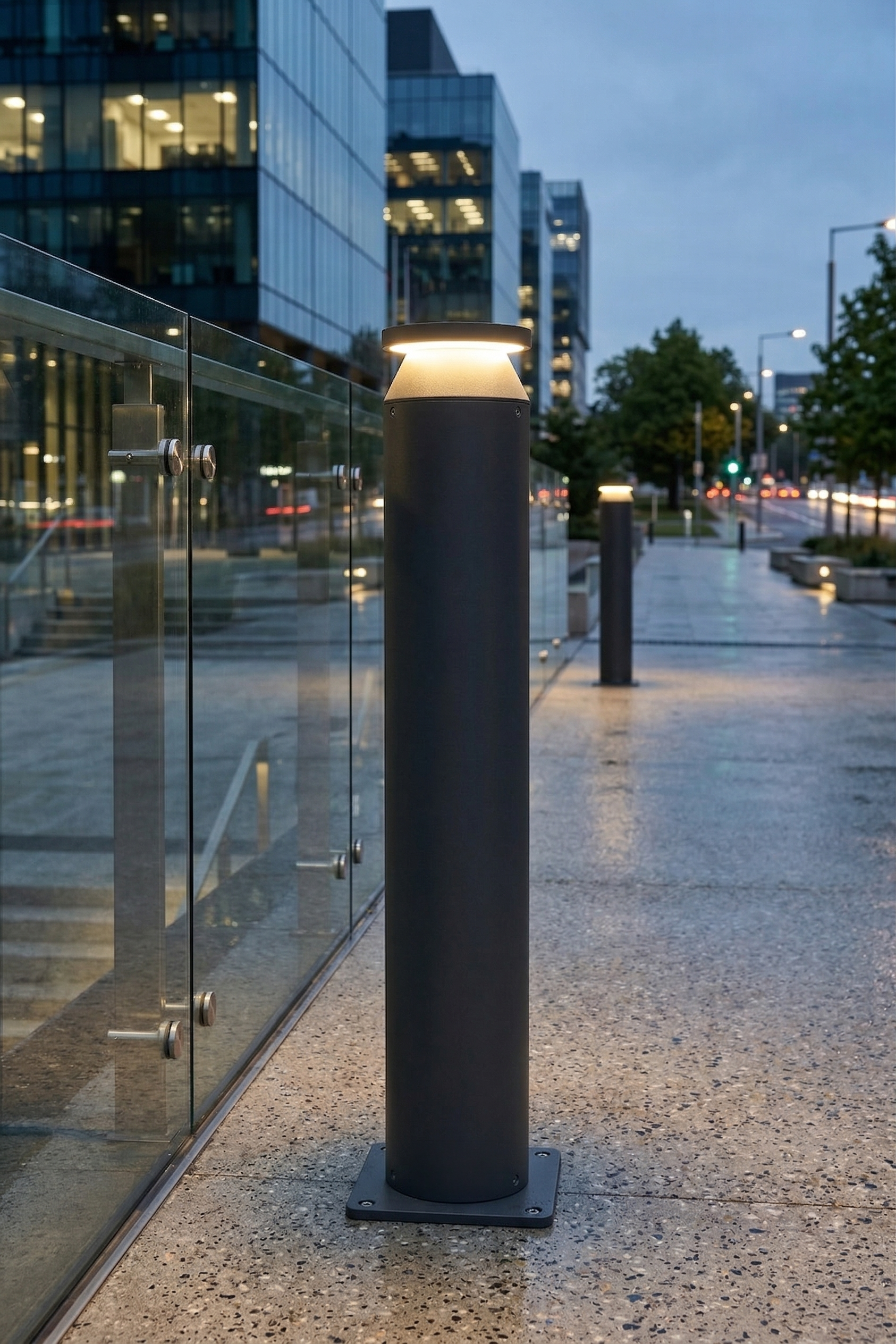

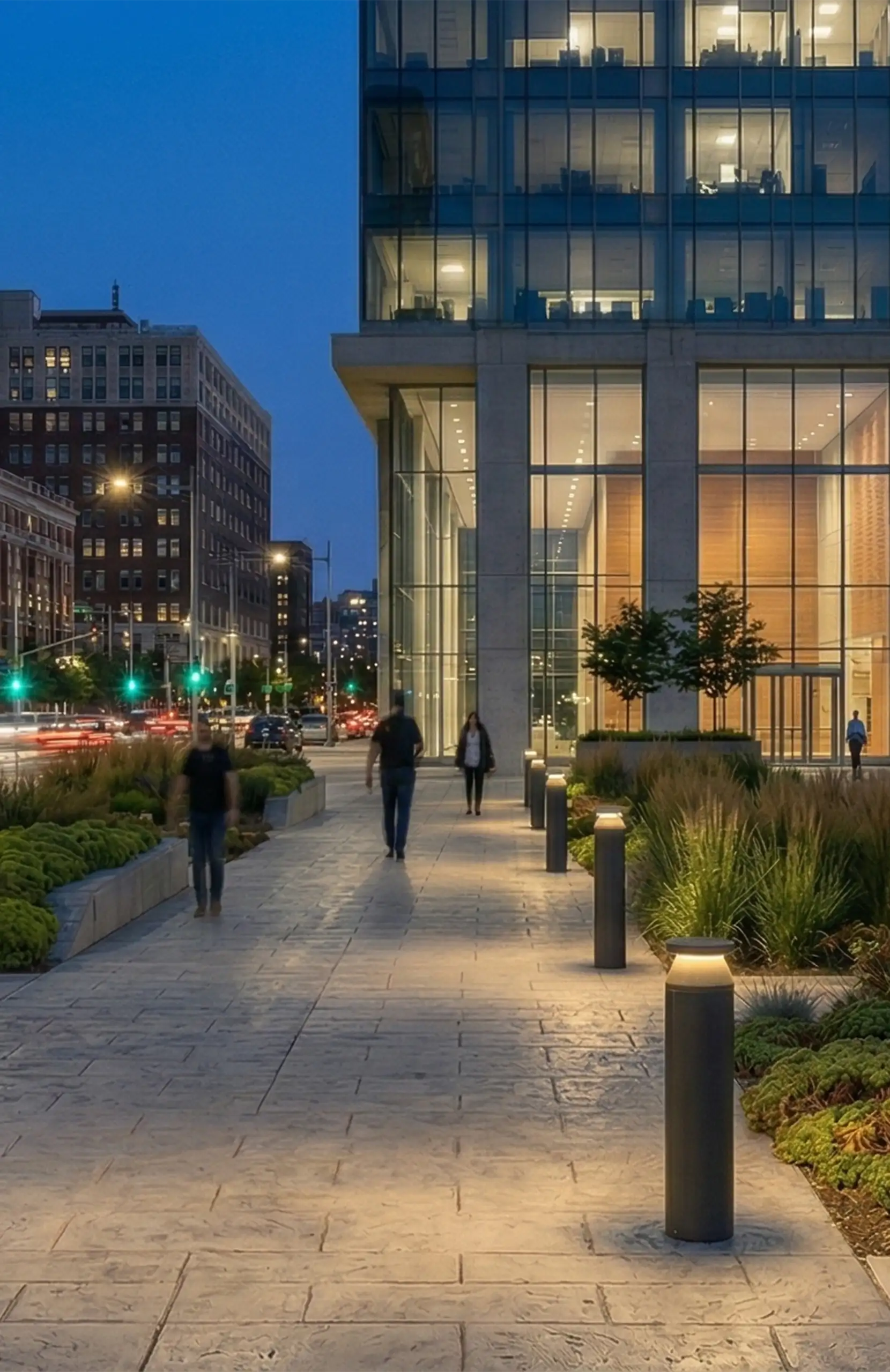

With its robust profile and symmetrical optical distribution, the Heera Lighting Bollard is designed for a wide range of demanding urban applications. It is ideally suited for:
- Promenades & Parks: Enhancing the aesthetic and security of long outdoor walkways and on-ground settings.
- City Centers: Perfect for illuminating modern town squares and public architectural installations.
- Highways: Ensuring reliable visibility and safety on pedestrian paths alongside primary transit routes.
